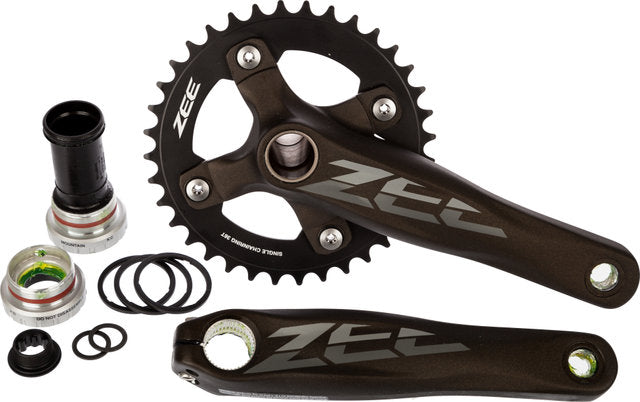

Shimano zee fc-m640 68 73 mm crankset

Product Description Shimano ZEE Crankset FC-M640 - For 68 and 73 mm bottom bracket widths The Shimano ZEE FC-M640 crankset fits bottom brackets with 68 or 73 mm shell width. With its resilient steel axle and steel pedal inserts, it is an indestructible partner for freeriders and downhill specialists. As a 4-arm single crank for Shimano 10-speed drivetrains, the FC-M640 comes with a 36-tooth chainring (104 mm bolt circle diameter) and in a stiff 2-piece design with two thick-walled aluminium crank arms. Specifications:Application:Enduro, DownhillCompatibility:Shimano 1x10-speedChainring Mount:104 mm bolt circle diameter, 4-armTechnical Information:Series:ZEE M640Crank Arm Material:AluminiumChainring Material:AluminiumAxle Material:steelGradation:36-toothCrank Arm Length:165.0 mm, 170.0 mm, 175.0 mmChainline:50.4 mmQ-Factor:174.7 mmCompatible BSA Shell Width:68 mm / 73 mmBottom Bracket:SM-BB52 Hollowtech II (SM-BB71-41A Pressfit optional)Recommended Chain:HG-X 10-speed (e.g. CN-HG95)Compatibility:Rear Over Locknut Dimension: quick release: 135 mmthru-axle: 142 mmFeatures:strong, thick-walled 2-piece crank armresilient steel axlesteel pedal insertpainted crank arms, anodised chainringsstainless steel chainring boltsTechnology:2-Piece Crankset With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets. Manufacturer Numbers:165.0 mm 36 tooth:E-FCM640AA6X170.0 mm 36 tooth:E-FCM640CA6X175.0 mm 36 tooth:E-FCM640EA6XContents:1 x Shimano ZEE FC-M640 crankset (36 tooth)1 x Shimano bottom bracket1 x crank bolt3 x bottom bracket spacers for 68/73 bottom bracket shells Weight: black | 175,0 mm | 36: 817 g Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
